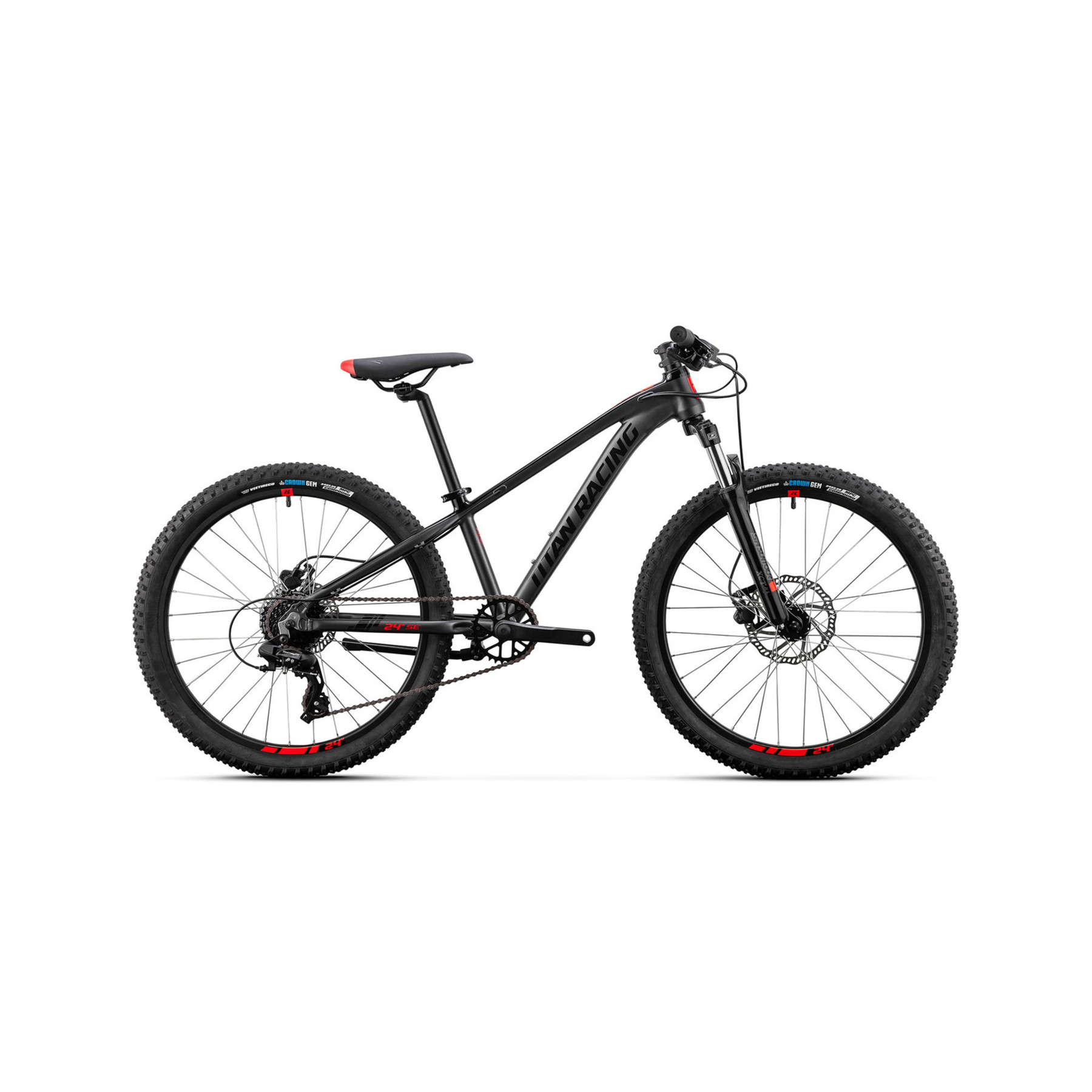

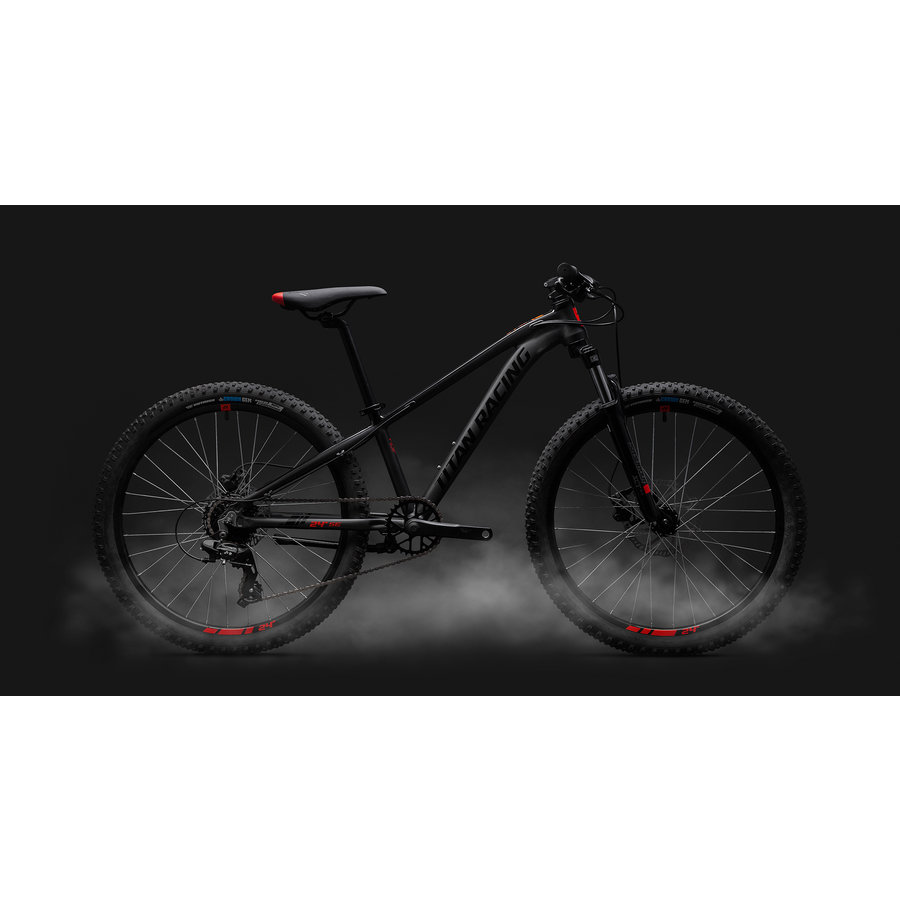

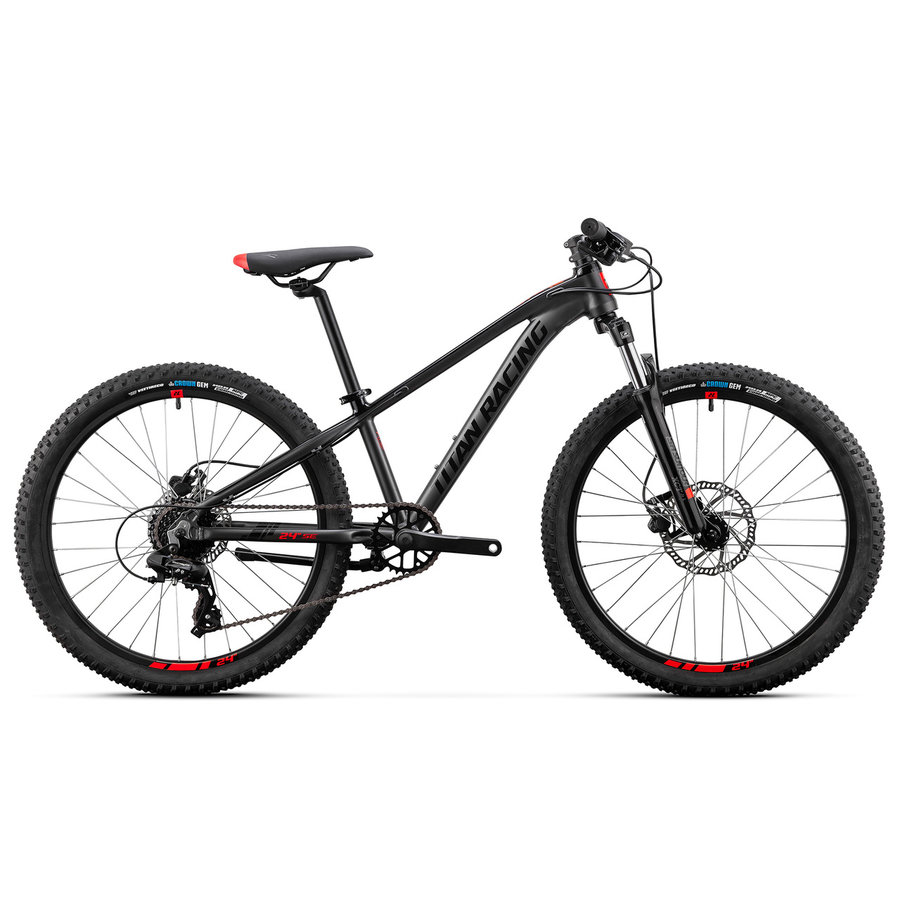

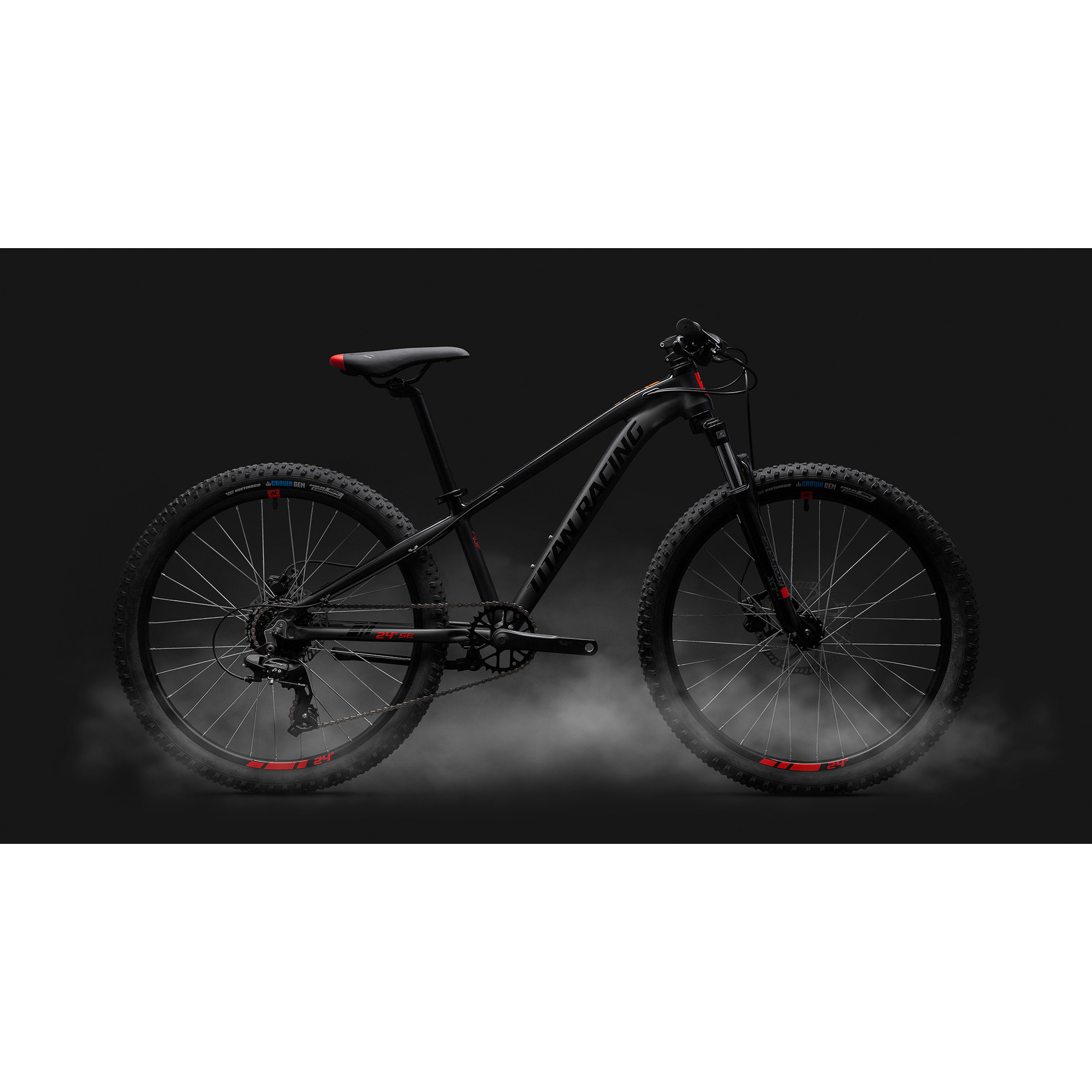

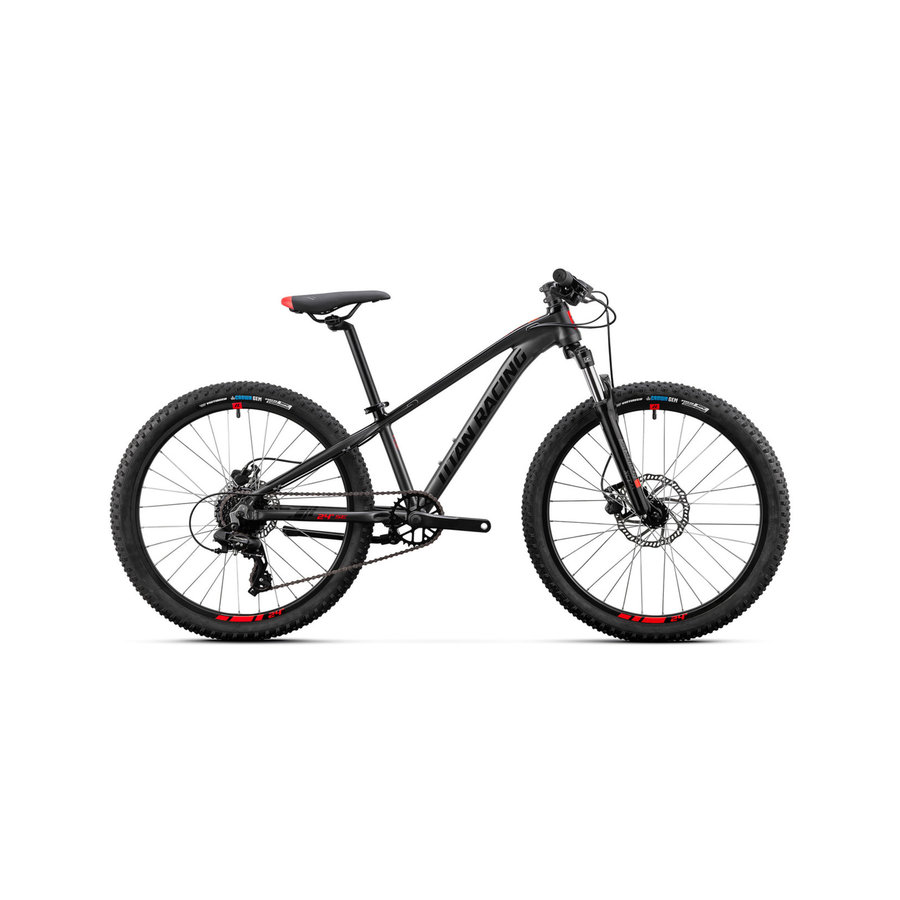

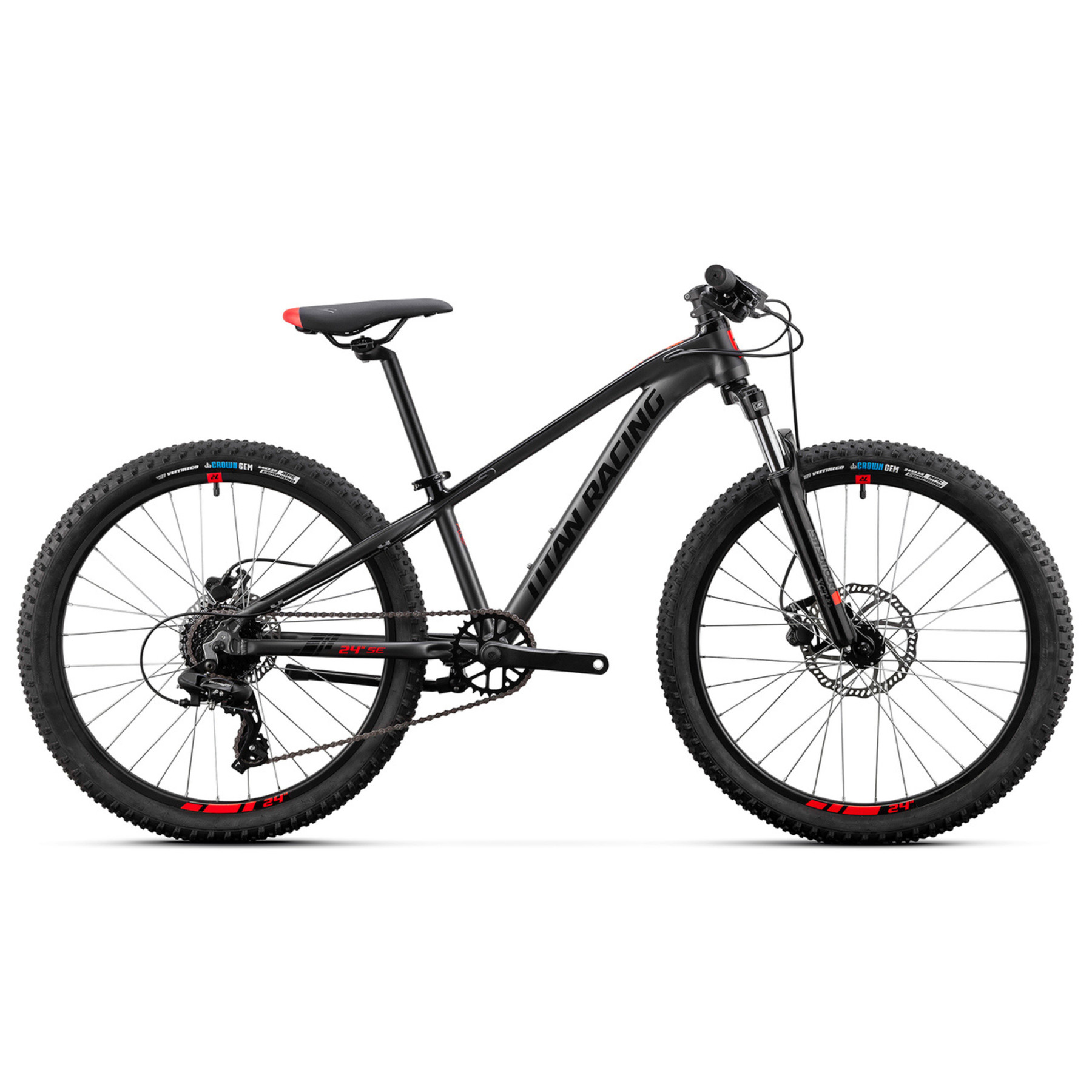

KEY FEATURES
- New Hades SE racing range of Junior bikes offer premium performance.
- Lightweight Hydroformed Aluminium Frame is designed to withstand all the bumps, knocks and crashes your little shredder throws at it. A low stand over heights aids children’s confidence.
- Internal cable routing keeps cables hiding and protected.
- SR Suntour Front Suspension Fork smoothes the ride.
- Shimano 8 Speed Gears are robust and offer easy shifting for young riders.
- Disc brakes offer superior stopping power to V-brakes and work in all weather conditions which makes them a great choice for any bike.
- Vee Rubber Crown Gem tires offer great performace and grip.
- TR Junior Grips are designed to meet the needs of a young rider. A smaller diameter and softer compound means a better grip.Â
- Selle Royal Saddle provides extra comfort for extended periods of riding.
- Adjustable Saddle & Seat Post make the bike adjustable as your child grows.
- Multi-user 5 Year Warranty ensures that you are buying quality.
FRAME | TR JUNIOR BOYS 24" 6061 HYDROFORMED ALLOY DISC FRAME WITH INTERNAL CABLES |
SPEED | 1 X 8 SPEED |
SIZE | 24″x10.5″ |
FORK | SR XCT JR 24″ |
BB SET | FP-B602 |
B-LEVER | TEKTRO HD-M282 KIDS |
BRAKE-F | TEKTRO HD-M282 180MM |
BRAKE-R | TEKTRO HD-M282 160MM |
B-CABLE | Â |
CHAIN | KMC Z50 |
CHAINWHEEL | PROWHEEL ZEPHYR-32T 8 SPEED 155mm |
DERA-F | NIL |
DERA-R | SHIMANO RD-M310 ALTUS |
FREEWHEEL | SHIMANO CS-HG200-8 12-32T |
GRIP | Â |
H-BAR | KIDS RIDER 31.8 600MM |
STEM | TR-SM-M015 45MM |
HEAD SET | FP H807 |
SPACER | 10mm |
HUB-F | ALLOY BLACK Q/R DISC |
HUB-R | ALLOY BLACK Q/R DISC |
PEDAL | KIDS |
RIM | TR MD16 32H 24" MATT BLACK |
SADDLE | SR 7040J |
SEAT CLAMP | TR AR-101 SQR115 |
SEAT POST | TR SP-102 27.2MM 250MM |
SHIFTER-R | NIL |
SHIFTER-L | SHIMANO SL-RS45 |
SPOKE | BLACK STEEL |
TUBE | A/V |
TIRE-F/R | VEE RUBBER CROWN GEM 24 X 2.25 SKINWALL |
Â
GEOMETRY
 | 24“ |
 |  |
HTA | 70 |
HTL | 95 |
TTL | 509 |
STA (v) | 72 |
STA (a) | 72 |
STL | 285 |
BBD | -25 |
BBH | 290,5 |
WB | 969 |
CSL | 405 |
ATC | 417 |
FO | 42 |
Reach | 349 |
Stack | 495 |
Trail | Â |
 |  |
Measurements in Millimeters (mm) and degrees. Inch measurement of ST length used for alternative size reference. | |
 |  |
 |  |
Wheel diameter with 24″ tire | |
 | 631 |
